Lighting reimagined for modern cities.

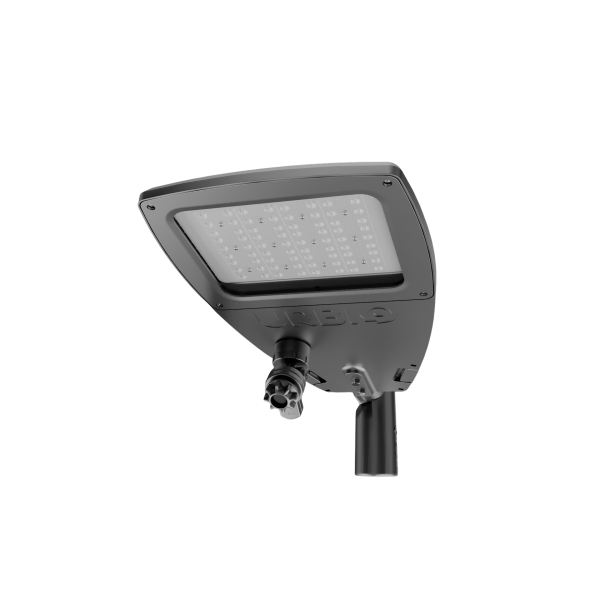

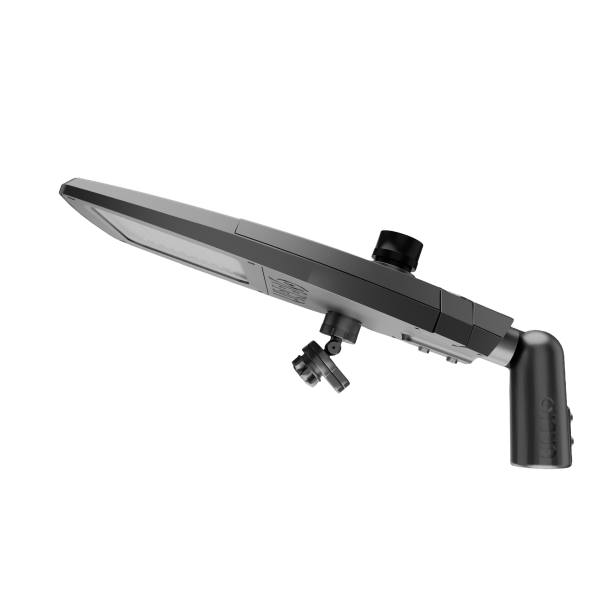

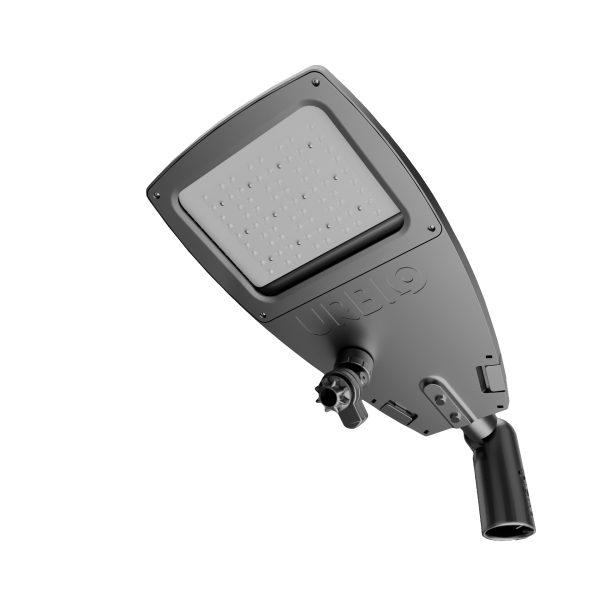

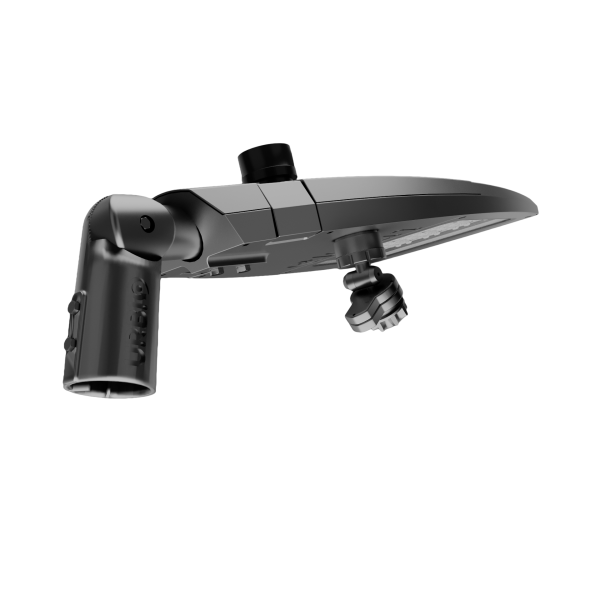

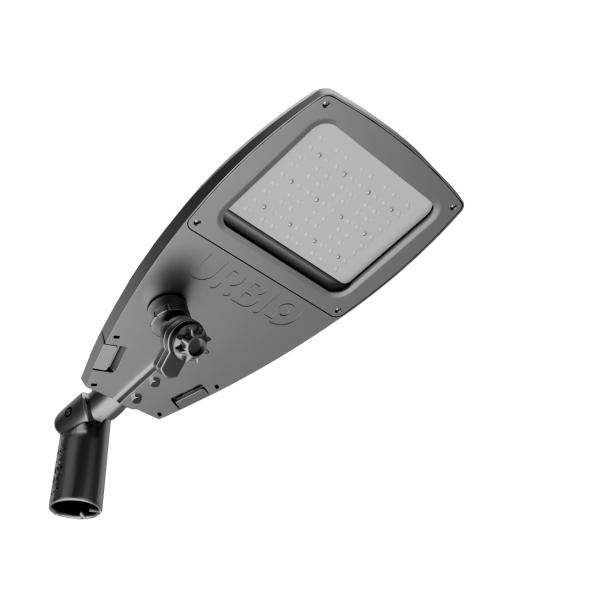

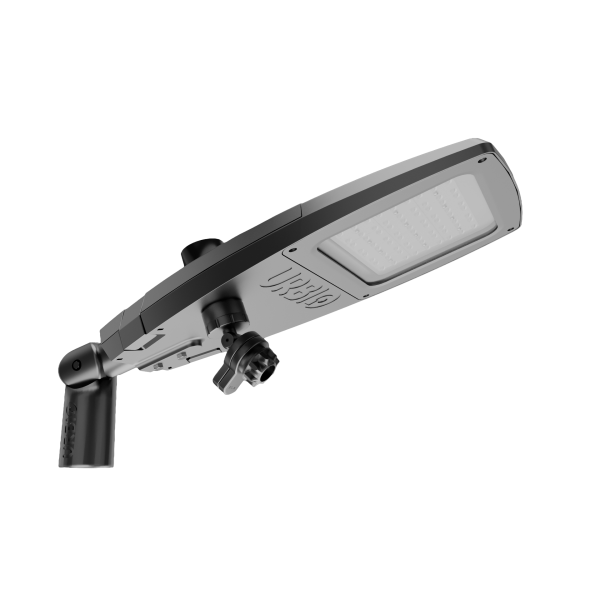

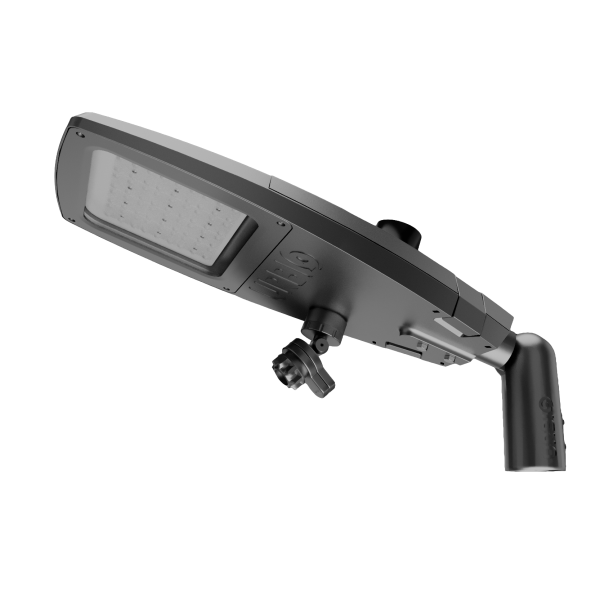

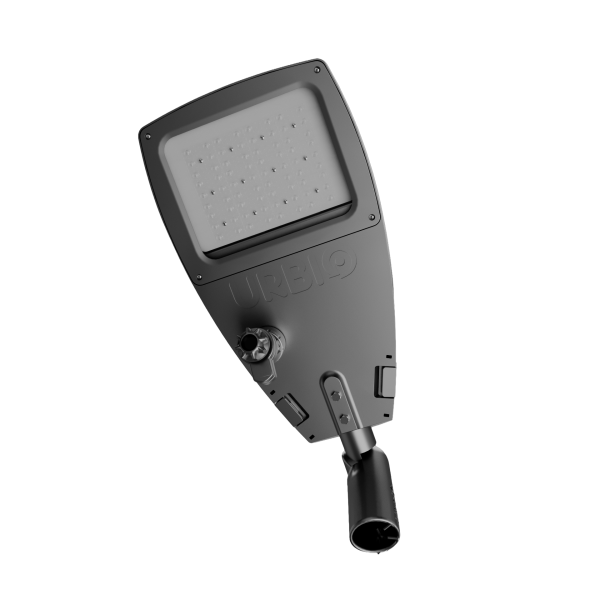

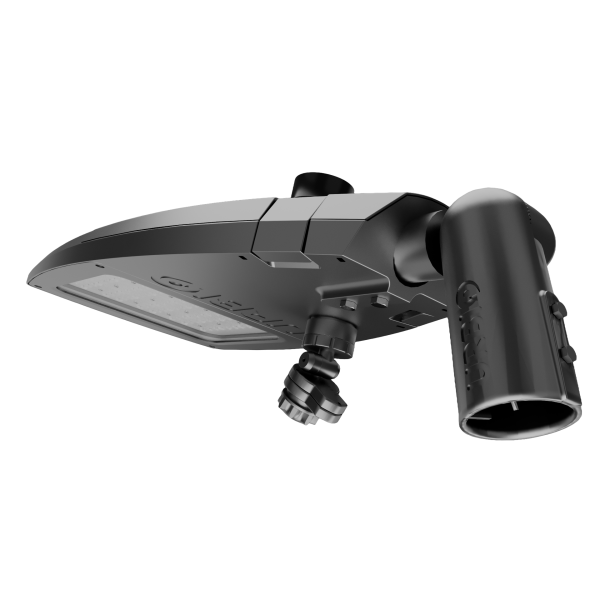

MESINA L Luminaires
Urbio’s Mesina System – the comprehensive lighting companion for the cities of the future – suitable for urban streets, boulevards, highways and residential areas.
Urbio / Products / Luminaires / Mesina
Mesina Luminaires
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lighting Series: Smart Luminaires
Collection: Urbio Mesina
LED Quantity: 24 / 36
LED Type: 5050 series LED
CCT: 3000 K to 5700 K ±10%
Distribution Angle: 138°
Protection: IP67 / IK09
Lifetime: 5 year warranty of 100,000 functioning hours
MESINA is URBIO’s high-performance smart LED luminaire range, purpose-built for modern Smart City lighting. Available in three sizes (M, L, XL), it offers integration with Lighting AI, extensive sensor and connectivity options, and industry-leading energy efficiency, making it ideal for streets, parks and highways. Made in the European Union.
Make Mesina Smart
Mesina is a highly configurable smart or non-smart luminaire, suitable for every project. Add compatible accessories to bring truly smart functionality to Mesina.
Select luminaire size
Compatible Accessories
Mesina Description & Specifications
Suitable for
Highways
High-output, efficient illumination designed to support visibility, safety and reliable operation across high-speed road infrastructure.
Boulevards
Uniform and visually comfortable lighting for wide urban avenues, major traffic corridors and representative city routes.
Urban Streets
Flexible street-lighting performance for city traffic, pedestrian activity and the diverse requirements of modern urban environments.
Residential Areas
Comfortable and controlled illumination for neighbourhood roads, residential developments and areas requiring reduced glare and visual disturbance.
Technical Specifications
| Specification | L | M | XL |
|---|---|---|---|
| Power | 40–110 W | 10–60 W | 110–180 W |
| LED Quantity | 48 / 72 pcs. | 24 / 36 pcs. | 80 / 120 pcs. |
| LED Type | 5050 series | 5050 series | 5050 series |
| CCT | 2700 K / 2700K / 3000 K / 4000 K / 5700 K | 2200 K / 2700K / 3000 K / 4000 K / 5700 K | 2700 K / 2700K / 3000 K / 4000 K / 5700 K |
| CRI | >70 / >80 | >70 / >80 | >70 / >80 |
| Luminous Flux | 7,100–19,600 lm | 2,120–10,000 lm | 18,400–30,800 lm |
| Luminaire Efficacy | 150-193 lm/W | 141–166 lm/W | 141–178 lm/W |
| Nominal Voltage | 220–240 Vac / 100–277 Vac | 220–240 Vac / 100–277 Vac | 220–240 Vac / 100–277 Vac |
| Power Factor | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| Operating Temperature | -40°C to +50°C | -40°C to +50°C | -40°C to +50°C |
| Protection | IP66 / IP67 / IK09 / IK10 | IP66 / IP67 / IK09 / IK10 | IP66 / IP67 / IK09 / IK10 |
| Surge Protection | SPD 10 kV / SPD 20 kV | SPD 10 kV / SPD 20 kV | SPD 10 kV / SPD 20 kV |
| Lifetime | 100,000 h | 100,000 h | 100,000 h |
| Warranty | 5 years | 5 years | 5 years |
| Housing | Die-cast aluminium | Die-cast aluminium | Die-cast aluminium |
| Optical Diffuser | Heat-resistant glass | Heat-resistant glass | Heat-resistant glass |
| Lens | PMMA / PC | PMMA / PC | PMMA / PC |
| Weight | 6.5 kg | 3.6 kg | 8 kg |
| Dimensions | 690 × 350 × 90 mm | 435 × 245 × 75 mm | 690 × 335 × 90 mm |
Certifications
Key Benefits
High energy efficiency
High lighting performance with optimized energy consumption and lower operating costs.
Built for demanding environments
Robust construction engineered for reliable outdoor use in streets, parks and public spaces.
Compact and versatile
A compact format suitable for a broad range of urban and public-space applications.
Long service life
Extended operating lifetime helps reduce maintenance interventions and lifecycle costs.
Designed for intelligent lighting projects
Compatible controllers, connectivity options and sensors allow Mesina to evolve into a connected smart-city lighting node.
Extremely Smart Capabilities
More than a luminaire.
A connected urban asset.
Scheduling
Flexible Lighting Scheduling – Automated lighting based on time, seasons, and custom schedules.
Dimming
Scenario-Based Dimming – Automatic light adjustment based on predefined scenarios.
Adaptive Lighting Color
Automatically adjusts light color based on real-time outdoor weather conditions.
How Mesina becomes intelligent
Choose your controller
Select the controller interface that matches the project, its lighting infrastructure and the required management system.
Plan your connectivity
Choose how Mesina communicates with the lighting management platform and the wider smart-city network.
Add sensors
Add compatible sensing technology for adaptive lighting, infrastructure monitoring and urban information collection.
One platform. Multiple smart capabilities.
Adaptive lighting
Adjust luminous output according to ambient light and changing external conditions.
Motion-responsive dimming
Increase or reduce illumination automatically based on pedestrian or vehicle activity.
Time-based lighting profiles
Run predefined schedules and optimized dimming strategies throughout the night.
Remote management
Monitor, configure and control individual luminaires or complete lighting networks remotely.
Energy and status monitoring
Track energy consumption, operating status and luminaire performance in real time.
Predictive maintenance
Identify faults early and use diagnostic information to improve maintenance planning.
Tilt and impact detection
Receive alerts related to pole movement, orientation changes or physical impact.
Environmental sensing
Monitor air quality, noise, temperature and local weather conditions.
Downloads
Technical documentation references key European standards, including EN 60598-1, EN 60598-2-3, EN 62031, EN 55015, EN 61547 and EN 62262.
Mesina Compatible Accessories
Smart Connectivity & Renewable Energy Ready
Discover a +, high-performance LED
luminaire range, designed for the
future of Smart-Cities.
Engineered for performance. Designed to be smart.
Mesina’s performance and
smart capabilities.
Explore the technology behind Mesina’s performance and smart capabilities.
MODULAR Construction
MODULAR Construction
MESINA’s modular architecture allows every luminaire to be configured for the specific needs of each project while simplifying installation, servicing and future upgrades. Built for long-term flexibility, it reduces maintenance time and extends product lifetime.
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
MESINA Smart Capabilities
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
Compatible SENSORS
The sensors integrated into Mesina are connected to the NEOS remote management platform to ensure full control, monitoring, and optimization of the lighting operation schedule based on vehicle and pedestrian traffic presence or weather conditions, either automatically according to predefined programs or manually as needed. The intensity and color of the light are programmed to change automatically to enhance visibility.
Motion detection
PIR Motion Sensor
Detects movement through infrared radiation and enables intelligent lighting activation only when pedestrians or vehicles are present.
Advanced motion detection
Radar Sensor
Uses radar technology to detect movement accurately across wider areas and in changing weather or environmental conditions.
Urban intelligence
Kamsens multi-sensor
A complete seven-in-one sensor platform that combines intelligent lighting control, environmental monitoring and urban infrastructure insights.
The (Smart) Urban Ecosystem
Discover how our lightning
solutions integrate in the
Urbio Smart City Ecosystem
MESINA este proiectată să funcționeze ca parte a unui ecosistem inteligent și interconectat, depășind rolul unui simplu corp de iluminat. Fiecare echipament devine un nod activ într-o rețea urbană care comunică permanent cu celelalte dispozitive din infrastructură. Prin intermediul gateway-urilor dedicate și al platformei software proprietare MyNeos, toate sistemele sunt conectate într-o singură rețea unificată, oferind municipalităților control instantaneu asupra întregii infrastructuri de iluminat. Această arhitectură permite monitorizarea permanentă de la distanță, gestionarea în timp real a echipamentelor, colectarea și analiza datelor operaționale, precum și implementarea rapidă a strategiilor de optimizare pentru creșterea eficienței, siguranței și sustenabilității orașului.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Learn how you can make
your Mesina luminaire smart!

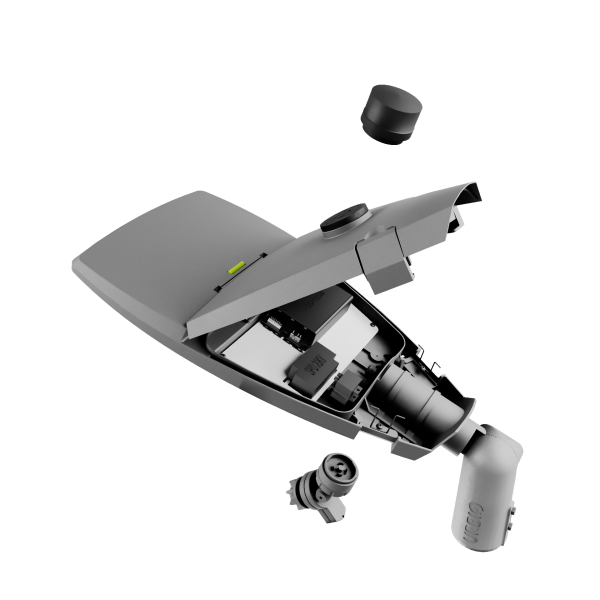

Functional FEATURES
Every component of MESINA is engineered to maximize performance, reliability and long-term value. From class-leading efficiency and advanced safety features to Smart City connectivity and exceptional durability, every detail is designed to meet the demands of modern urban infrastructure.
01
LED Module
High-performance LED module engineered for maximum efficacy, uniform illumination, and a lifetime of up to 100,000 hours.
02
Heat-Resistant Glass
Tempered heat-resistant glass protects the optical system while maintaining excellent light transmission in demanding outdoor environments.
03
Surge Protection Device (SPD)
Integrated 10kV / 20kV surge protection shields the luminaire against lighting strikes and power surges, ensuring long-term reliability.
04
LED Driver
High-efficiency constant-current driver provides stable performance, intelligent dimming, and compatibility with advanced Smart City control systems.
05

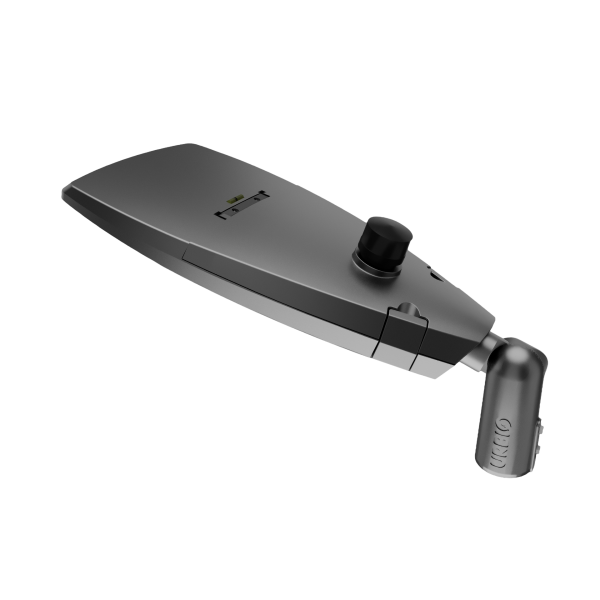

Integrated Bubble Level
Built-in bubble level enables precise luminaire alignment, ensuring faster installation and optimal lighting performance.
06
Angle Indexer
Optional tilt indexer allows precise adjustment from -90° to +90° in 5° increments for perfect aiming in any application.
07
NEMA / Zhaga Controller Socket
Supports NEMA or Zhaga controllers for seamless integration with Smart City lighting management systems.
08
Die-Cast Aluminum Housing
Robust die-cast aluminum construction provides exceptional mechanical strength, efficient thermal management, and long-term corrosion resistance.
09
Zhaga Sensor Socket
Dedicated Zhaga Book 18 socket for plug-and-play integration of motion, daylight, and environmental sensors.
