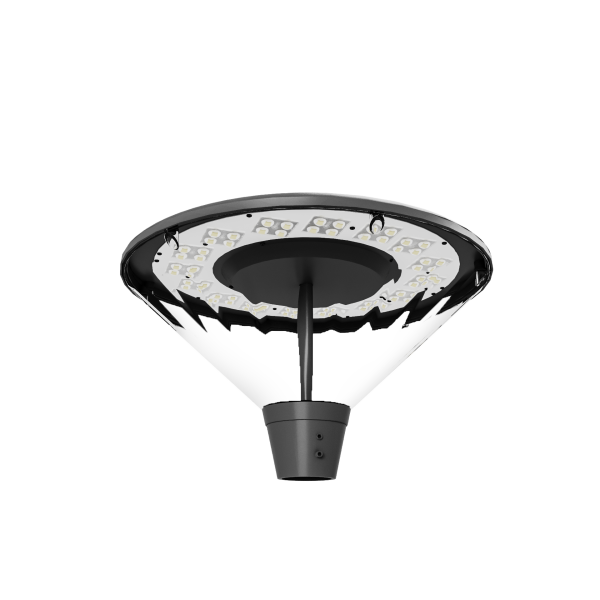

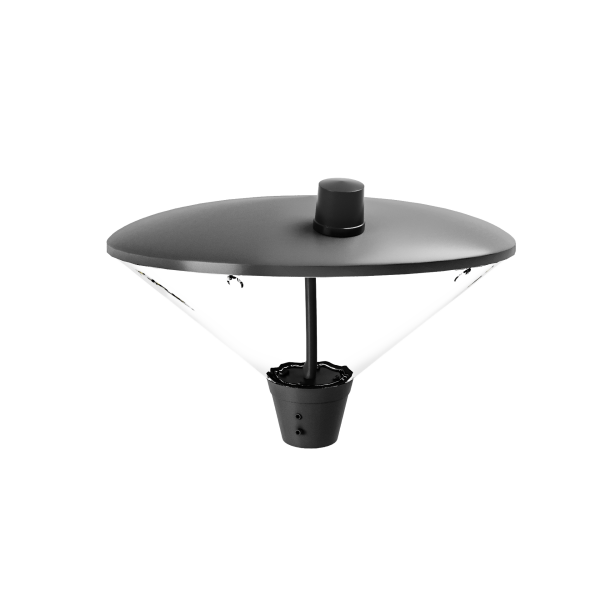

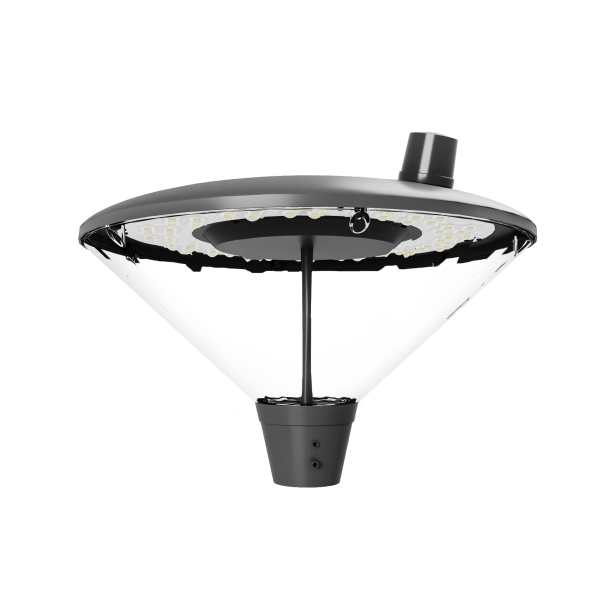

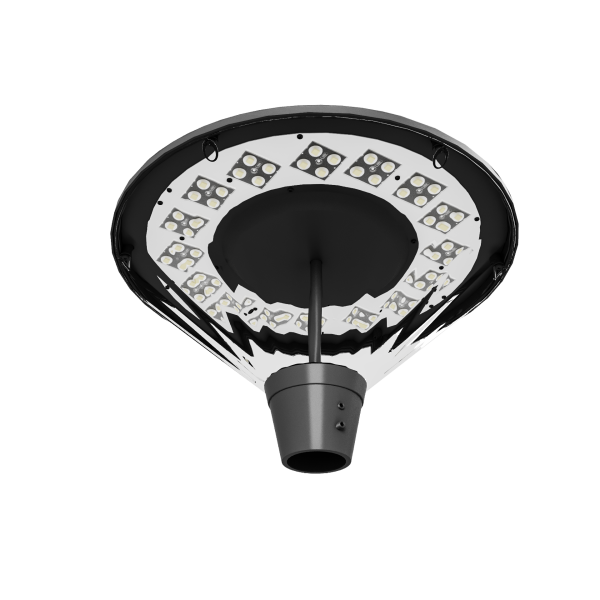

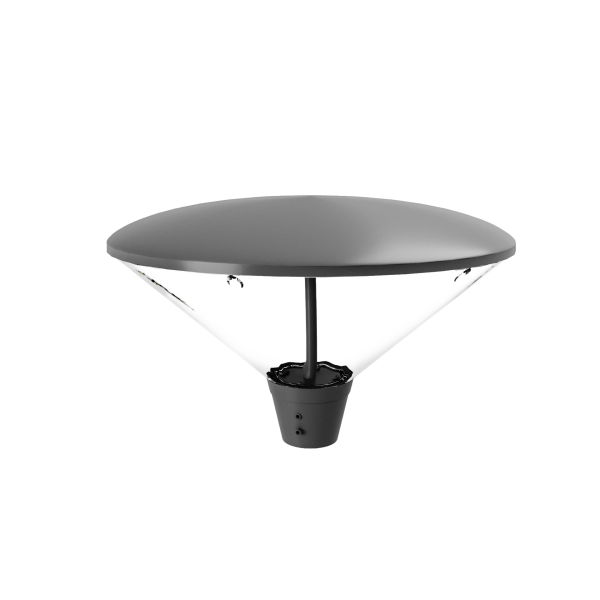

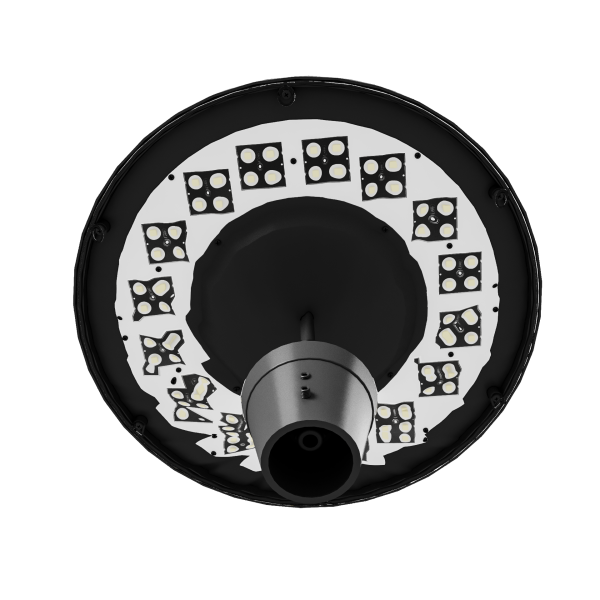

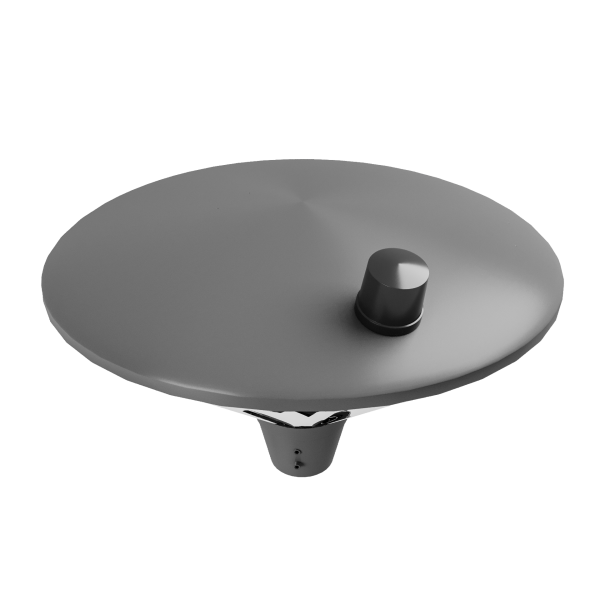

DOME Luminaire
Urbio’s DOME combines distinctive post-top design with advanced LED technology, delivering uniform, low-glare lighting and smart-ready performance for modern urban spaces.
Urbio / Products / Luminaires / Mesina
Mesina Luminaires
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lighting Series: Smart Luminaires
Collection: Urbio Mesina
LED Quantity: 24 / 36
LED Type: 5050 series LED
CCT: 3000 K to 5700 K ±10%
Distribution Angle: 138°
Protection: IP67 / IK09
Lifetime: 5 year warranty of 100,000 functioning hours
MESINA is URBIO’s high-performance smart LED luminaire range, purpose-built for modern Smart City lighting. Available in three sizes (M, L, XL), it offers integration with Lighting AI, extensive sensor and connectivity options, and industry-leading energy efficiency, making it ideal for streets, parks and highways. Made in the European Union.
Make Dome Smart
Dome is a highly configurable smart or non-smart luminaire, suitable for every project. Add compatible accessories to bring truly smart functionality to Dome.
Compatible Accessories
Mesina Description & Specifications
Suitable for
Parks
Balanced, glare-controlled illumination that enhances green spaces and supports safe evening use for visitors and residents alike.
Plazas
Even, comfortable lighting for public squares and gathering spaces, supporting visibility, safety and everyday city life after dark.
Pedestrian Streets
Soft, evenly distributed lighting for pedestrian streets and walkways, prioritizing comfort, visibility and safety for people on foot.
Public Gardens
Gentle, well-balanced illumination for public gardens and recreational areas, creating an inviting atmosphere after sunset.
Technical Specifications
| Specification | DOME |
|---|---|
| Power | 10–60 W |
| LED Quantity | 24 / 48 pcs. |
| LED Type | LED Module |
| CCT | 2700 K / 3000 K |
| CRI | >70 |
| Nominal Voltage | 220–240 Vac, 50/60 Hz |
| Optical Diffuser | Polycarbonate |
| Operating Temperature | −40°C to +55°C |
| Electrical Class | Class I |
| Protection | IP66 / IK09 |
| Surge Protection | 10 kV |
| NFC | Yes |
| Dimming / Control Interface | DALI-2 / D4i |
| Connectivity | NEMA (optional) / Zhaga (optional) |
| Lifetime | 100,000 h |
| Warranty | 5 years |
| Housing | Aluminium |
| Weight | Max. 8 kg |
| Dimensions | 517 × 331 mm |
Certifications
Key Benefits
Enhanced visual comfort
Optimized optics deliver uniform illumination with reduced glare for pedestrian and public spaces.
Designed for urban spaces
Distinctive post-top design integrates naturally into parks, plazas and pedestrian areas.
Flexible light distribution
Multiple optical configurations adapt the light distribution to different urban applications.
Long-lasting performance
Robust construction and a 100,000-hour lifetime support reliable, low-maintenance operation.
Ready for intelligent urban lighting
DALI-2/D4i control and optional NEMA or Zhaga connectivity enable DOME to integrate into smart lighting infrastructures.
Extremely Smart Capabilities
More than a luminaire.
A connected urban asset.
Scheduling
Flexible Lighting Scheduling – Automated lighting based on time, seasons, and custom schedules.
Dimming
Scenario-Based Dimming – Automatic light adjustment based on predefined scenarios.
How Mesina becomes intelligent
Choose your controller
Select the controller interface that matches the project, its lighting infrastructure and the required management system.
Plan your connectivity
Choose how Mesina communicates with the lighting management platform and the wider smart-city network.
One platform. Multiple smart capabilities.
Time-based lighting profiles
Run predefined schedules and optimized dimming strategies throughout the night.
Remote management
Monitor, configure and control individual luminaires or complete lighting networks remotely.
Energy and status monitoring
Track energy consumption, operating status and luminaire performance in real time.
Predictive maintenance
Identify faults early and use diagnostic information to improve maintenance planning.
Downloads
Technical documentation references key European standards, including EN 60598-1, EN 60598-2-3, EN 62031, EN 55015, EN 61547 and EN 62262.
Mesina Compatible Accessories
Smart Connectivity & Renewable Energy Ready
Discover a +, high-performance LED
luminaire range, designed for the
future of Smart-Cities.
Engineered for performance. Designed to be smart.
Mesina’s performance and
smart capabilities.
Explore the technology behind Mesina’s performance and smart capabilities.
MODULAR Construction
MODULAR Construction
MESINA’s modular architecture allows every luminaire to be configured for the specific needs of each project while simplifying installation, servicing and future upgrades. Built for long-term flexibility, it reduces maintenance time and extends product lifetime.
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
MESINA Smart Capabilities
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
Compatible SENSORS
The sensors integrated into Mesina are connected to the NEOS remote management platform to ensure full control, monitoring, and optimization of the lighting operation schedule based on vehicle and pedestrian traffic presence or weather conditions, either automatically according to predefined programs or manually as needed. The intensity and color of the light are programmed to change automatically to enhance visibility.
Motion detection
PIR Motion Sensor
Detects movement through infrared radiation and enables intelligent lighting activation only when pedestrians or vehicles are present.
Advanced motion detection
Radar Sensor
Uses radar technology to detect movement accurately across wider areas and in changing weather or environmental conditions.
Urban intelligence
Kamsens multi-sensor
A complete seven-in-one sensor platform that combines intelligent lighting control, environmental monitoring and urban infrastructure insights.
The (Smart) Urban Ecosystem
Discover how our lightning
solutions integrate in the
Urbio Smart City Ecosystem
MESINA este proiectată să funcționeze ca parte a unui ecosistem inteligent și interconectat, depășind rolul unui simplu corp de iluminat. Fiecare echipament devine un nod activ într-o rețea urbană care comunică permanent cu celelalte dispozitive din infrastructură. Prin intermediul gateway-urilor dedicate și al platformei software proprietare MyNeos, toate sistemele sunt conectate într-o singură rețea unificată, oferind municipalităților control instantaneu asupra întregii infrastructuri de iluminat. Această arhitectură permite monitorizarea permanentă de la distanță, gestionarea în timp real a echipamentelor, colectarea și analiza datelor operaționale, precum și implementarea rapidă a strategiilor de optimizare pentru creșterea eficienței, siguranței și sustenabilității orașului.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
